Model: YTLG-12D
Specification: Gland multi manifold type
Freeze dried area: 0.08m 2
Bottled volume of penicillin 12mm: 560
Bottled volume of penicillin 16mm: 285
Bottled volume of penicillin 22mm: 165
Cold trap temperature: ≤ -60 ° C (optional -80 ° C)
Capture water KG/batch: 4
Standard vacuum degree: ≤ 5Pa
Extreme vacuum degree: 2PA
Material tray: 180mm, 3 layers in total (movable layer)
Overall power: 680W (standard vacuum pump 370W)
Host weight: 86kg
Boundary dimension mm: 600X560X760
Power supply: AC220V 25A 50HZ
Applicable environment: ambient temperature ≤ 30 ° C
Host running noise: ≤ 55dB
Standard configuration: vacuum pump, 2 KF25 clamps, 1 KF vacuum hose
- Product Details
- Product manual

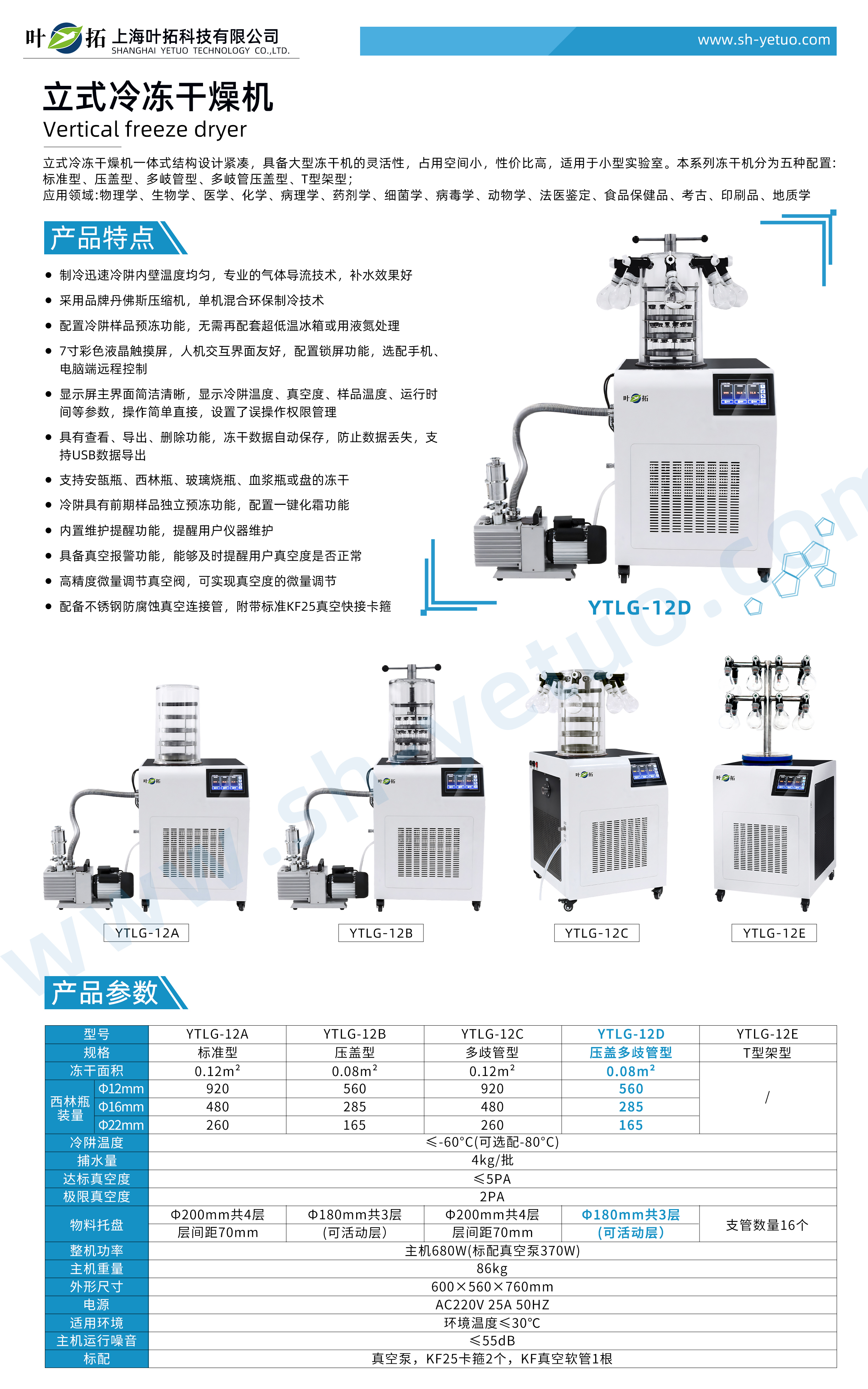

Model: YTLG-12D
Working principle: The integrated structure of the vertical freeze-dryer is compact, has the flexibility of a large freeze-dryer, takes up small space, and has high cost performance. It is suitable for small laboratories. This series of freeze-drying machine is divided into five configurations: standard type, gland type, manifold type, manifold gland type and T-frame type.
Application fields: physics, biology, medicine, chemistry, pathology, pharmacy, bacteriology, virology, zoology, forensic identification, food and health products, archaeology, printing, geology.
Product features
1.Rapid cooling The temperature of the inner wall of the cold trap is uniform, and the professional gas diversion technology has good water capture effect.
2. The brand Danfoss compressor is adopted, and the single-machine hybrid environmental protection refrigeration technology is adopted.
3. The cold trap sample pre-freezing function is configured, and there is no need to be equipped with an ultra-low temperature refrigerator or treated with liquid nitrogen.
4.7 inch color LCD touch screen, friendly human-computer interface, configured with lock screen function, mobile phone and computer terminal remote control.
5. The main interface of the display screen is simple and clear, displaying parameters such as cold trap temperature, vacuum degree, sample temperature, running time, etc. The operation is simple and direct, and misoperation authority management is set.
6. It has the functions of viewing, exporting and deleting, freeze-dried data is automatically saved to prevent data loss, and USB data export is supported.
7. Support the lyophilization of ampoules, penicillin bottles, glass flasks, plasma bottles or plates.
8. The cold trap has the function of independent pre-freezing of early samples, and is equipped with the function of one-button defrosting.
9. Built-in maintenance reminder function to remind users of instrument maintenance.
10. With vacuum alarm function, it can timely remind users whether the vacuum is normal.
11. High-precision micro-adjustment vacuum valve can realize micro-adjustment of vacuum degree.
12. It is equipped with stainless steel anti-corrosion vacuum connecting pipe and standard KF25 vacuum quick coupling clamp.
