Product model: YTJB-150SH
Mixing volume L (H2O): 60
Speed range rpm: 30-2200
Speed display: LCD
Speed display resolution rpm: ± 1
Timing function min: 1-9999
Torque N.cm: 80
Overload protection: display fault, automatic stop
Motor protection: display fault, automatic stop
Viscosity mPas: 80000
Clamping diameter range of drill chuck mm: 0.5-10
External dimensions (DxWxH) mm: 186X83X220
Weight kg: 3
Dinen60529 protection method: IP42
Permissible ambient temperature ℃: 5-40
Allowable ambient humidity%: 80
RS232 interface: Yes
Motor input power W: 160
Motor output power W voltage VAC: 150 100-240
Frequency HZ: 50/60
Safety protection: collet protection sleeve, safety buckle, anti slip pad
Mixing time setting: Yes
Speed regulation method: coarse and fine tuning
Speed mode: Yes
Fixing method of mixing paddle: self-locking clamp
- Product Details
- Product manual

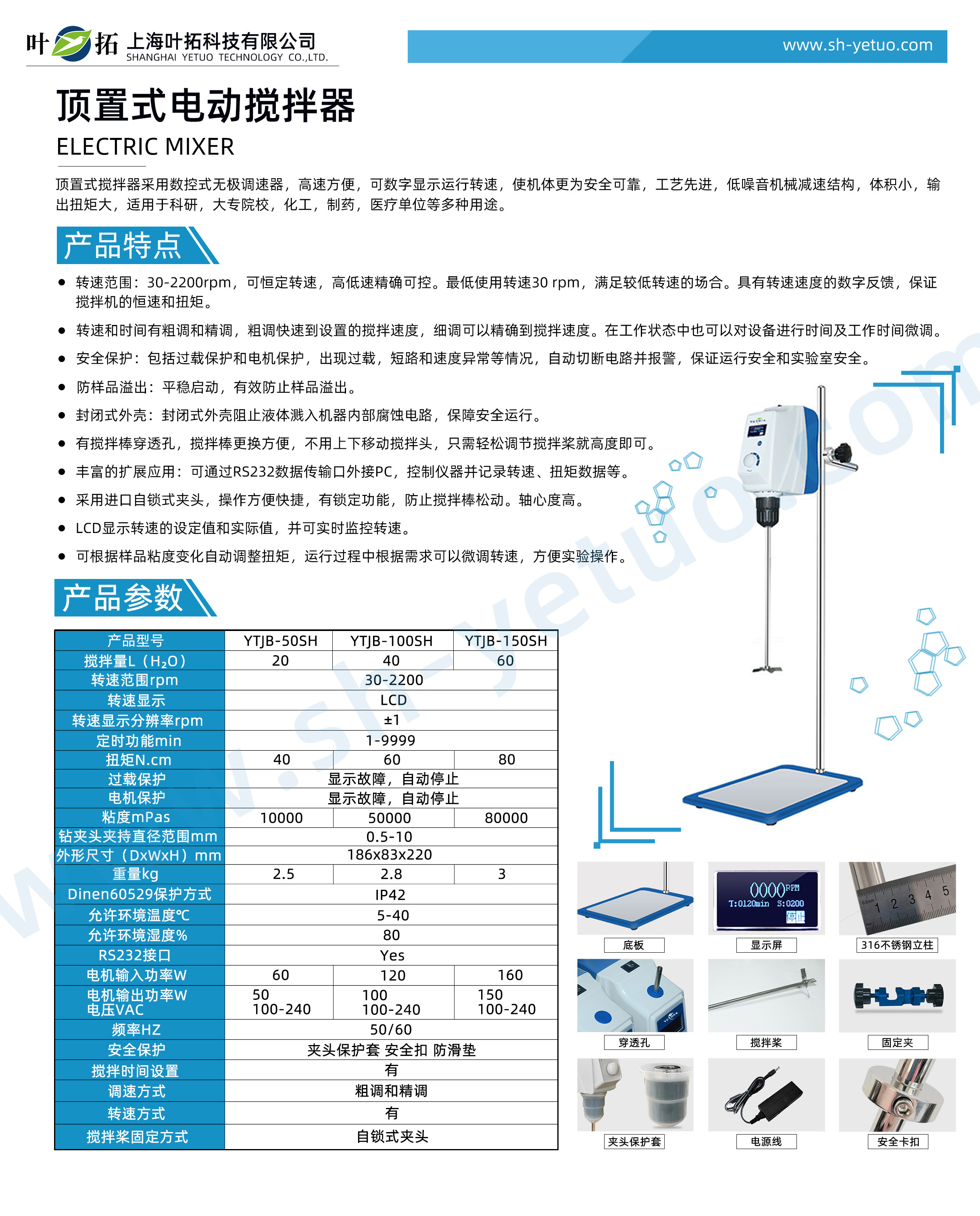

The top mounted agitator adopts numerical control stepless governor, which is high-speed and convenient, and can digitally display the running speed, making the body safer and more reliable, advanced technology, low-noise mechanical deceleration structure, small volume and large output torque. It is suitable for scientific research, colleges and universities, chemical industry, pharmacy, medical treatment units and other purposes.
Product features
1. Speed range: 30-2200rpm, constant speed, precise and controllable high and low speed. The minimum operating speed is 30rpm, which can meet the occasion of low speed. Digital feedback of speed ensures constant speed and torque of mixer.
2. The speed and time can be roughly adjusted and finely adjusted. The coarse adjustment is fast to the set mixing speed, and the fine adjustment can be accurate to the mixing speed. In the working state, you can also fine tune the time and working time of the equipment.
3. Safety protection: including overload protection and motor protection. In case of overload, short circuit and abnormal speed, automatically cut off the circuit and alarm to ensure operation safety and laboratory safety.
4. Prevent sample overflow: start smoothly to effectively prevent sample overflow.
5. Enclosed enclosure: the enclosed enclosure prevents liquid from splashing into the internal corrosion circuit of the machine to ensure safe operation.
6. There is a mixing rod through hole, which makes it easy to replace the mixing rod. There is no need to move the mixing head up and down, and the height of the mixing paddle can be easily adjusted.
7. Rich extended applications: PC can be connected externally through RS232 data transmission port to control the instrument and record speed, torque data, etc.
8. Imported self-locking chuck is adopted, which is convenient and fast to operate and has locking function to prevent the mixing rod from loosening. High axial degree.
9. LCD displays the set value and actual value of speed, and can monitor the speed in real time.
10. The torque can be automatically adjusted according to the change of sample viscosity. During operation, the speed can be adjusted according to the demand to facilitate the experimental operation.
